BY-NFS1015

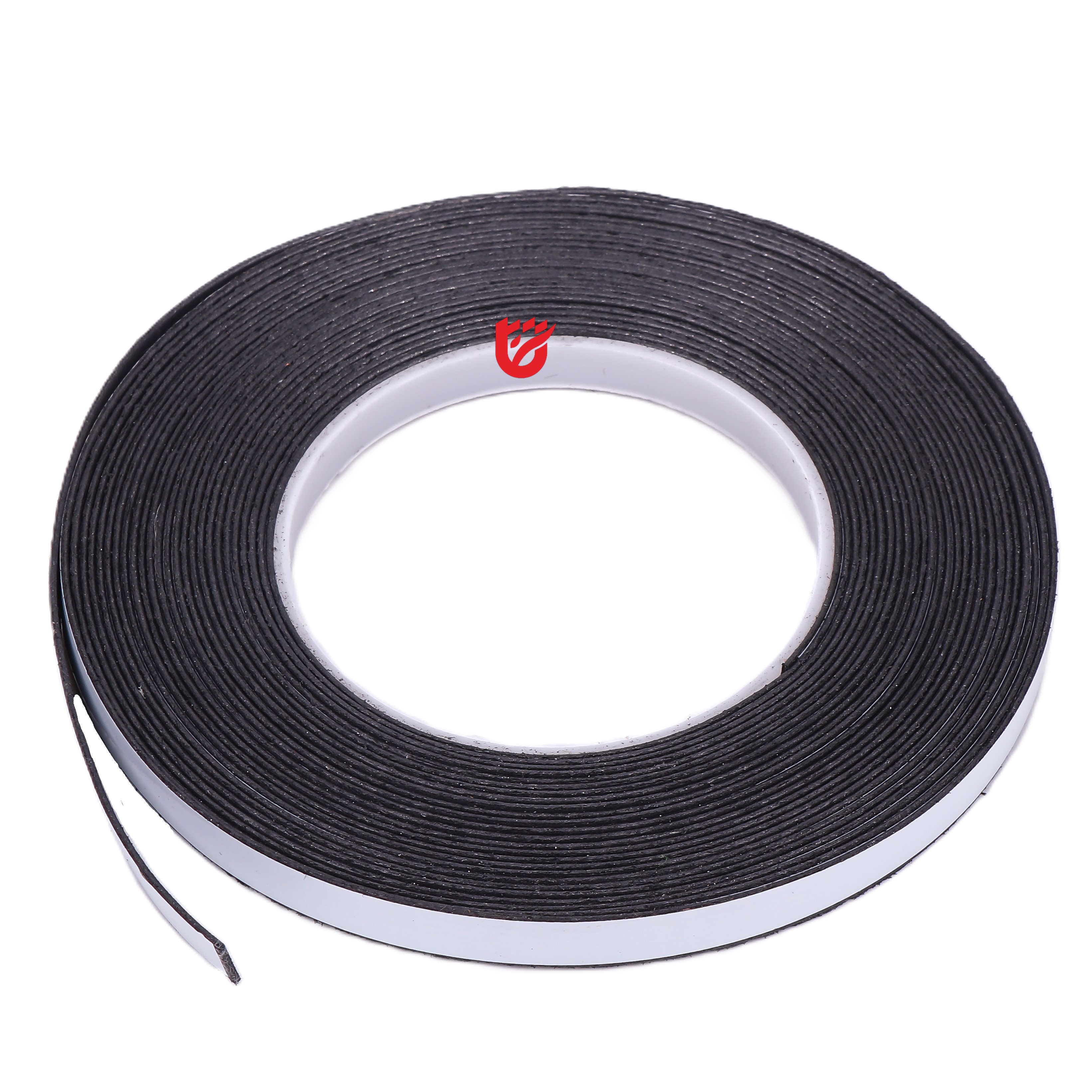

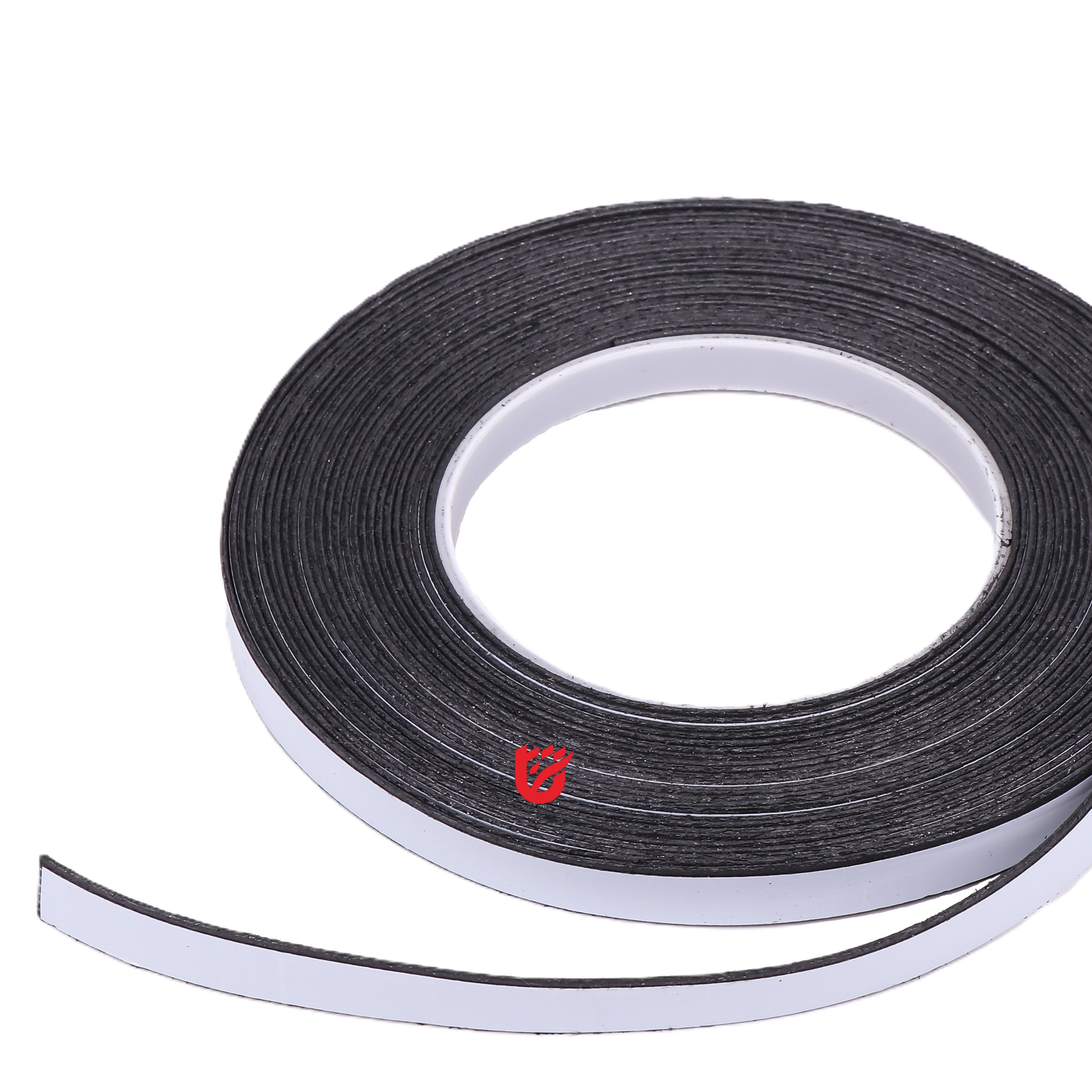

The BIYOU Intumescent Fire Tape is based on expansion graphite, it is used for fire door and window or any places to prevent fire, smoke & acoustic throughout, obtained both integrity and insulation rate as required. This is also one of the most versatile intumescent products on the market giving the benefits of flexibility and resistance to atmospheric degradation. No special protective measures are necessary to ensure that this product will expand on heating when required to do so. The highly flexible material will conform to accommodate tight corners where it is impossible or difficult to use other rigid intumescent strip products.
POPULAR PRODUCT SIZE
|
Product Code |
Dimension (mm) |
Product Code |
Dimension (mm) |
Expansion Ration |
|
BY-NFS1010 |
10*1.0 |
BY-NFS3020 |
30*2.0 |
15 times 30 times |
|
BY-NFS1015 |
10*1.5 |
BY-NFS3040 |
30*4.0 |
|
|
BY-NFS1515 |
15*1.5 |
BY-NFS3820 |
38*2.0 |
|
|
BY-NFS1520 |
15*2.0 |
BY-NFS4020 |
40*2.0 |
|
|
BY-NFS2015 |
20*1.5 |
BY-NFS5020 |
50*2.0 |
|
|
BY-NFS2020 |
20*2.0 |
BY-NFS6020 |
60*2.0 |
Width up to 500 mm and other thicknesses up to 8mm are possible.
It is also possible to manufacture other profiles for incorporating into specific customer products.
EXPANSION RATIO
The BIYOU Intumescent Fire Tape is a general-purpose intumescent material, based on expandable graphite that will expand more than 30 fold when heated.
FIELD OF APPLICATION
The BIYOU Intumescent Fire Tape has been specifically designed for use in the following applications: 1, Surface mounted applications.
2, For use single and double action timber doors.
3, Insulated and non-insulated steel doors and frame.
4, New build and retro-fit applications
5, Inner material for Fire Collar and Fire Damper
6, Different kinds of ironmongery pad
PRODUCT FEATURES
1,Could be supplied with or without an acrylic self-adhesive backing.
2,Intumescent material is high-pressure and multi-directional.
3,Intumescent material is totally unaffected by water, robust, ‘non-flaking’ and difficult to tear.
4,Intumescent material is in black color
PRODUCT TESTING
The BIYOU Intumescent Fire Tape approved by EN 1634-1:2014,UL10C,AS1530.4.
