BY-AADS-I
|
Product Name |

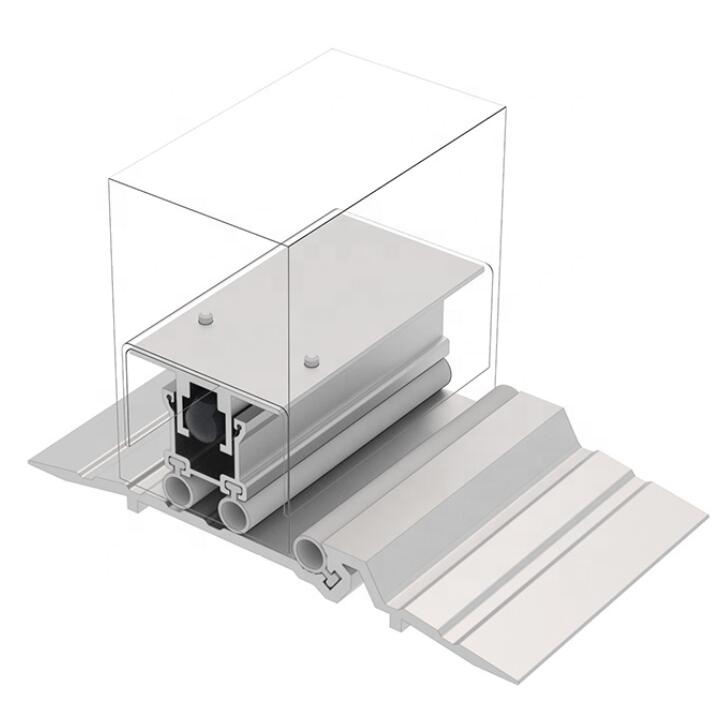

Steel Door Drop Seal |
|
Application |
Single and double leaf doors |
|
Material |
Aluminium Alloy+Silicon Rubber |
|
Color |
Satin Anodised Aluminium (SAA) Cover Plate, Light Grey (seal & actuator) |
|

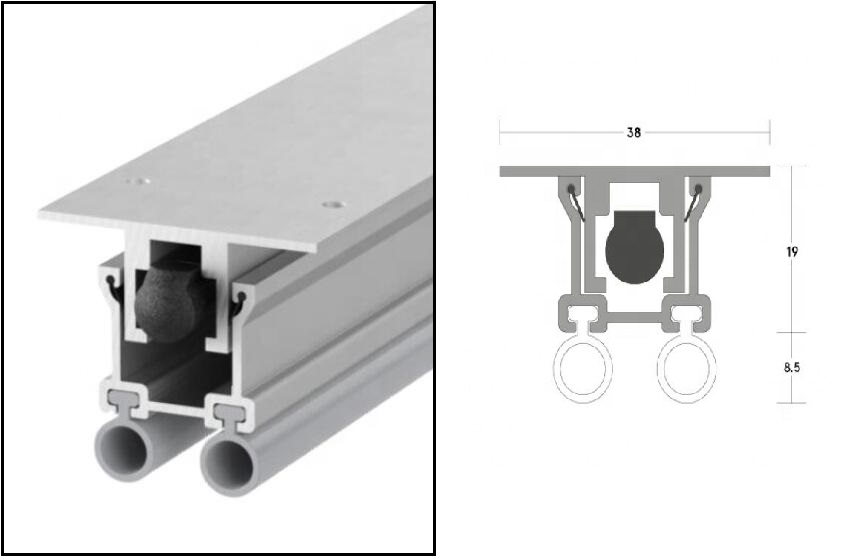

Dimension(mm) |
38x19mm |
|
Gap(mm) |
Min. 3 mm / max. 13 mm |
|
Standard Length (mm) |
600mm,820mm,920mm,1070mm, 1220mm |
|
Fixing |
Screw fix to the door bottom |
Cutting back length
|
Nominal Seal Lengths |
Cuts back to |
|
1220mm |
1070 |
|
1070mm |
920 |
|
920mm |
820 |
|
820mm |
600 |
|
60mm |
380 |
