BY-PCSS1040
|
Material |
Graphite and EVA |
||
|
Application |
Fire windows and doors |
||
|
Activation temprature |
180℃ |
||
|
Expansion Rate |
25 times |
||
|
Fire Rated time |
60mins |
||
|
Product Code |
Dimension (mm) |
Pcs/Ctn |
ColoR |
|
BY-PCSS-1040 |
10x4x2200 |
150 |
Brown,White,Black, Grey or customized colors. |
|
BY-PCSS-1540 |
15x4x2200 |
100 |
|
|
BY-PCSS-2040 |
20x4x2200 |
75 |
|
|
BY-PCSS-3040 |
30x4x2200 |
50 |

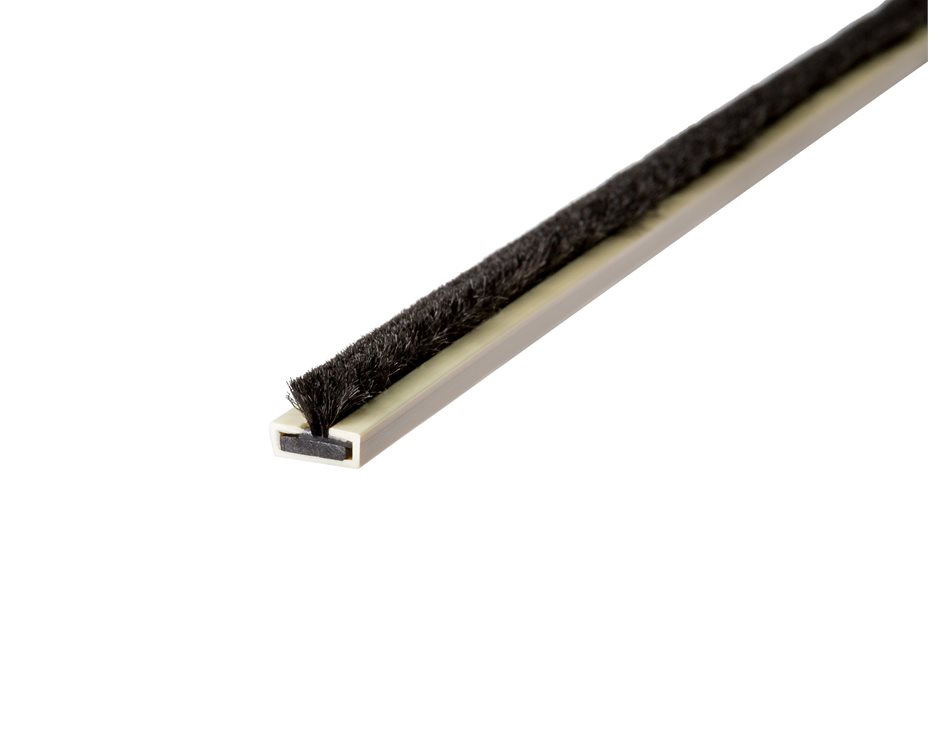

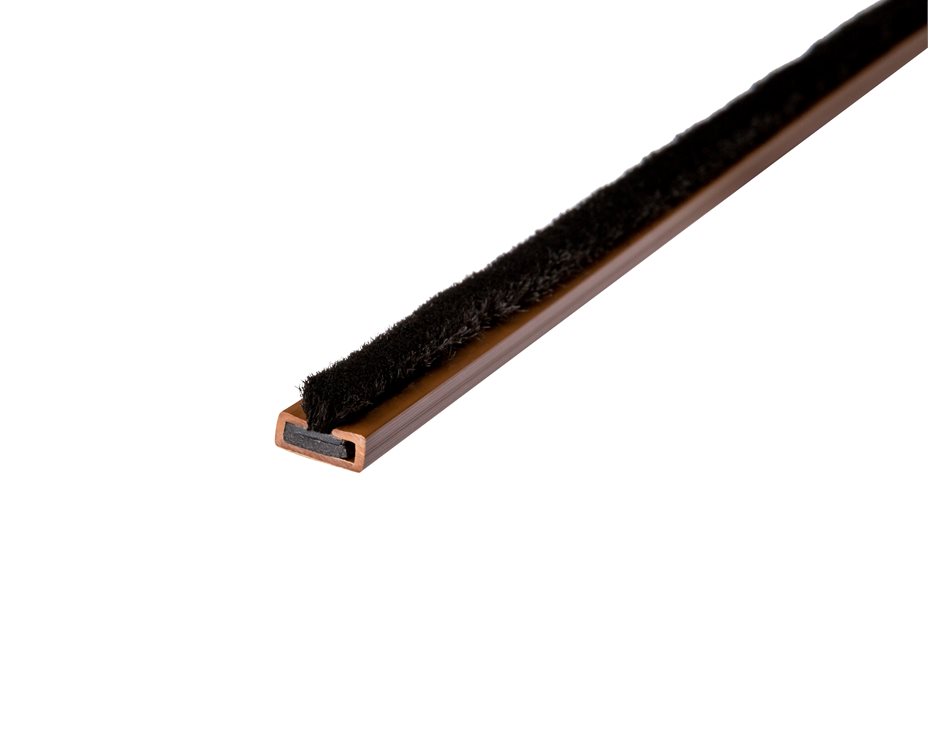

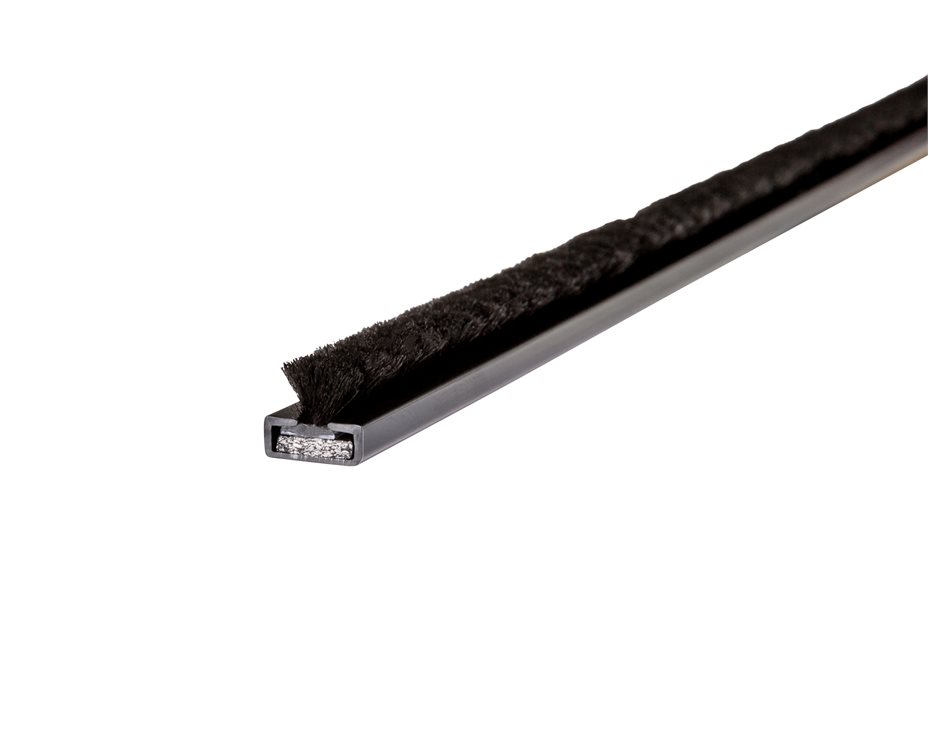

The Fire/Smoke seals have been designed for use in fire resisting door assemblies to seal the gap between leaf and frame, or between separate leaves, in the event of a fire. When subjected to the heat of a fire the intumescent core material expands to fill any gap between the door leaf and frame. This forming of a robust char barrier will hold up the passage of hot gases and smoke as well as the flames.
The Fire/Smoke seals are suitable for use on fire resisting door assemblies manufactured from timber, or timber doors with steel frames. They are unaffected by atmospheric moisture and therefore do not require any further protection.
FURNACE TEMPERATURE / TIME CURVE
EXPANSION RATIO
The Intumescent Fire & Smoke Seal is a general-purpose intumescent material, based on expandable graphite that will expand more than 20 fold when heated
