Intumescent Fire Grilles Air Grilles Fire damper

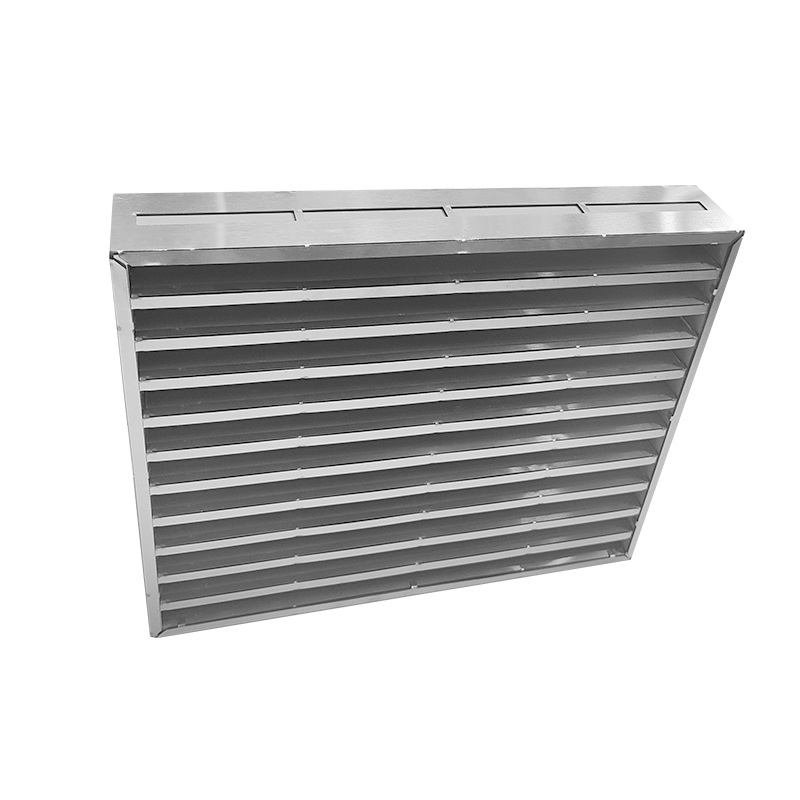

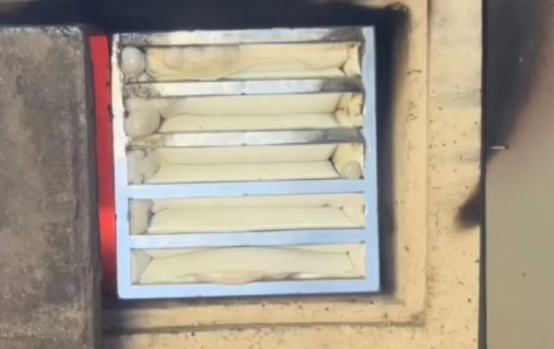

The rectangular intumescent grills act as a firewall, they have been developed to allow a free ventilation through the compartment elements against fire maintaining the fire protection capacity intact of these elements. The grids are composed from a series of horizontal intumescent slats with a perimeter frame from the same material or metallic. The space between each slat is calculated for a maximum ventilation while it assures the total sealing in case of fire.
Applications
The firewall grids allow a ventilation through the different elements of compartmentalization, firewalls as doors, walls, partitions, floors, ceilings, false ceilings, ducts (PVC tubes).
The firewall grids allow a ventilation through the different elements of compartmentalization, firewalls as doors, walls, partitions, floors, ceilings, false ceilings, ducts (PVC tubes).
Installation
· The grills are mechanically fixed in the work place through screws or metallic profiles.
· It is advisable to leave 1 or 2 mm in all the perimeter which has to be filled with putty.
· The grills are mechanically fixed in the work place through screws or metallic profiles.
· It is advisable to leave 1 or 2 mm in all the perimeter which has to be filled with putty.
Storage / Safety / Hygiene
· In a cool and dry place.
· Usual hygiene at work.
Product Dimension
|
Model |
Dimension (mm) |
| BY-IFG-252540 |
250x250x40 |
| BY-IFG-252550 |
250x250x50 |
| BY-IFG-252560 |
250x250x60 |
| BY-IFG-404060 |
400x400x60 |
| BY-IFG-404050 |
400x400x50 |
| BY-IFG-404040 |
400x400x40 |
